Features · Support Multi Protocol from 9.9Gb/s to 11.3Gb/s · Duplex LC Connector · 2-wire Interface for Management and Diagnostic Monitor · DWDM 100GHz ITU Grid C-band wavelength available · Compliant with IEEE 802.3ae,10G FC,SONET OC-192/SDH STM-64 · 18-Wavelength CWDM 1270nm to 1610nm available · RoHS-6 Compliant
|
P/N |
Data Rate |
Reach |
Tx |
Rx |
Output Power |
Sensitivity |
|

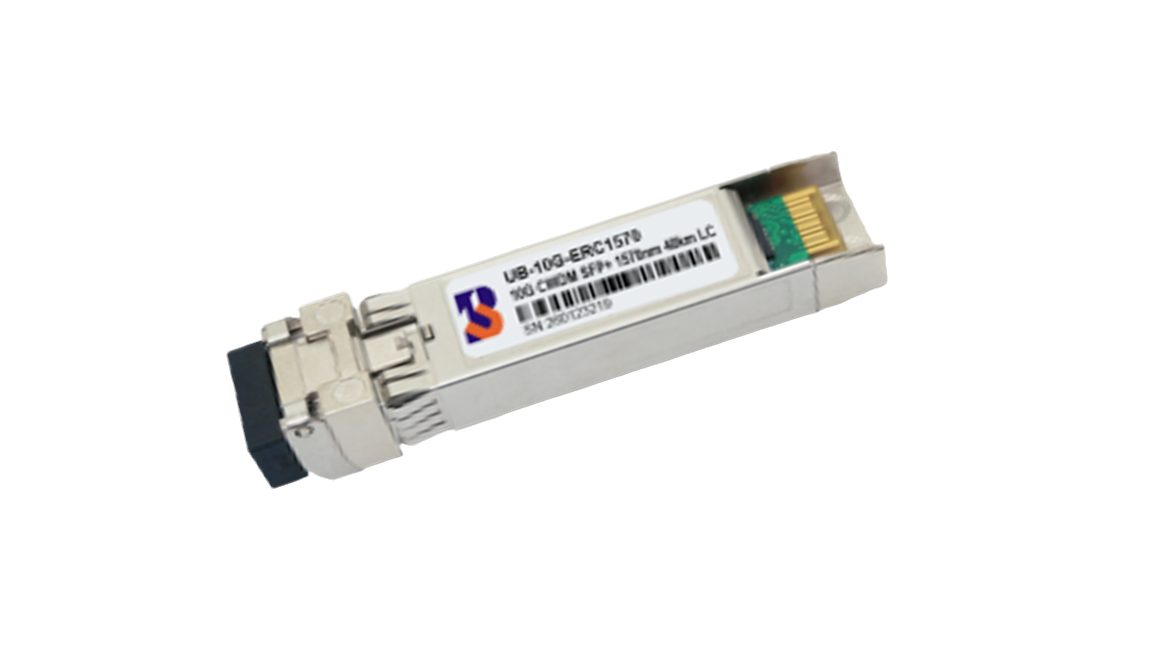

10Gbps CWDM SFP+ |
||||||
|
UB-SFP+-20Cxxxx |
10Gbps |
20KM |
CWDM 1270~1610nm DFB |
PIN |
-1~5.5dbm |
≤-15dbm |
|
UB-SFP+-ERCxxxx |
10Gbps |
40KM |
CWDM 1270~1450nm DFB |
PIN |
0~5.5dbm |
≤-15dbm |
|
UB-SFP+-ERCxxxx |
10Gbps |
40KM |
CWDM 1470~1610nm EML |
PIN |
0~5.5dbm |
≤-16dbm |
|
UB-SFP+-ZRCxxxx |
10Gbps |
80KM |
CWDM 1470~1610nm EML |
APD |
0~5.5dbm |
≤-23dbm |
|
10Gbps DWDM SFP+ |
||||||
|
UB-SFP+-ERDxx |
10Gbps |
40KM |
DWDM EML |
PIN |
-1~4dbm |
≤-16dbm |
|
UB-SFP+-ZRDxx |
10Gbps |
80KM |
DWDM EML |
APD |
-1~5dbm |
≤-23dbm |
|
UB-SFP+-ZRD82 |
10Gbps |
80km |
DWDM Tunable |
APD |
-1~5dbm |
≤-23dbm |
100GHZ ITU Grid DWDM Wavelength
|
Channel No |
Central Wavelength(nm) |
Frequency (THZ) |
Channel No |
Central Wavelength(nm) |
Frequency (THZ) |
Channel No |
Central Wavelength(nm) |
Frequency (THZ) |
|
17 |
1563.86 |
191.7 |
32 |
1551.72 |
193.2 |
47 |
1539.77 |
194.7 |
|
18 |
1563.05 |
191.8 |
33 |
1550.92 |
193.3 |
48 |
1538.98 |
194.8 |
|
19 |
1563.23 |
191.9 |
34 |
1550.12 |
193.4 |
49 |
1538.19 |
194.9 |
|
20 |
1561.42 |
192.0 |
35 |
1549.32 |
193.5 |
50 |
1537.40 |
195.0 |
|
21 |
1560.61 |
192.1 |
36 |
1548.51 |
193.6 |
51 |
1536.61 |
195.1 |
|
22 |
1559.79 |
192.2 |
37 |
1547.72 |
193.7 |
52 |
1535.82 |
195.2 |
|
23 |
1558.98 |
192.3 |
38 |
1546.92 |
193.8 |
53 |
1535.04 |
195.3 |
|
24 |
1558.17 |
192.4 |
39 |
1546.12 |
193.9 |
54 |
1534.25 |
195.4 |
|
25 |
1557.36 |
192.5 |
40 |
1545.32 |
194.0 |
55 |
1533.47 |
195.5 |
|
26 |
1556.55 |
192.6 |
41 |
1544.53 |
194.1 |
56 |
1532.68 |
195.6 |
|
27 |
1555.75 |
192.7 |
42 |
1543.73 |
194.2 |
57 |
1531.90 |
195.7 |
|
28 |
1554.94 |
192.8 |
43 |
1542.94 |
194.3 |
58 |
1531.12 |
195.8 |
|
29 |
1554.13 |
192.9 |
44 |
1542.14 |
194.4 |
59 |
1530.33 |
195.9 |
|
30 |
1553.33 |
193.0 |
45 |
1541.35 |
194.5 |
60 |
1529.55 |
196.0 |
|
31 |
1552.52 |
193.1 |
46 |
1540.56 |
194.6 |
61 |
1528.77 |
196.1 |
