Features *Hot-pluggable SFP28 footprint *Buit-in digital diagnostic functions *Oxide VCSEL/EML/DFB transmitter *Compliant with single lane 100G Ethernet applications *Duplex LC connector *Up to 40km on 9/125μm SMF,100m(150m)over MMF (50/125μm Om4),70m(100m)over MMF(50/125μm OM3) *Single 3.3V power supply operating *TX input and RX output CDR retiming *RoHS-6 Compliant
|
P/N |
Data Rate |
Reach |
Tx |
Rx |
Output Power |
Sensitivity |
|

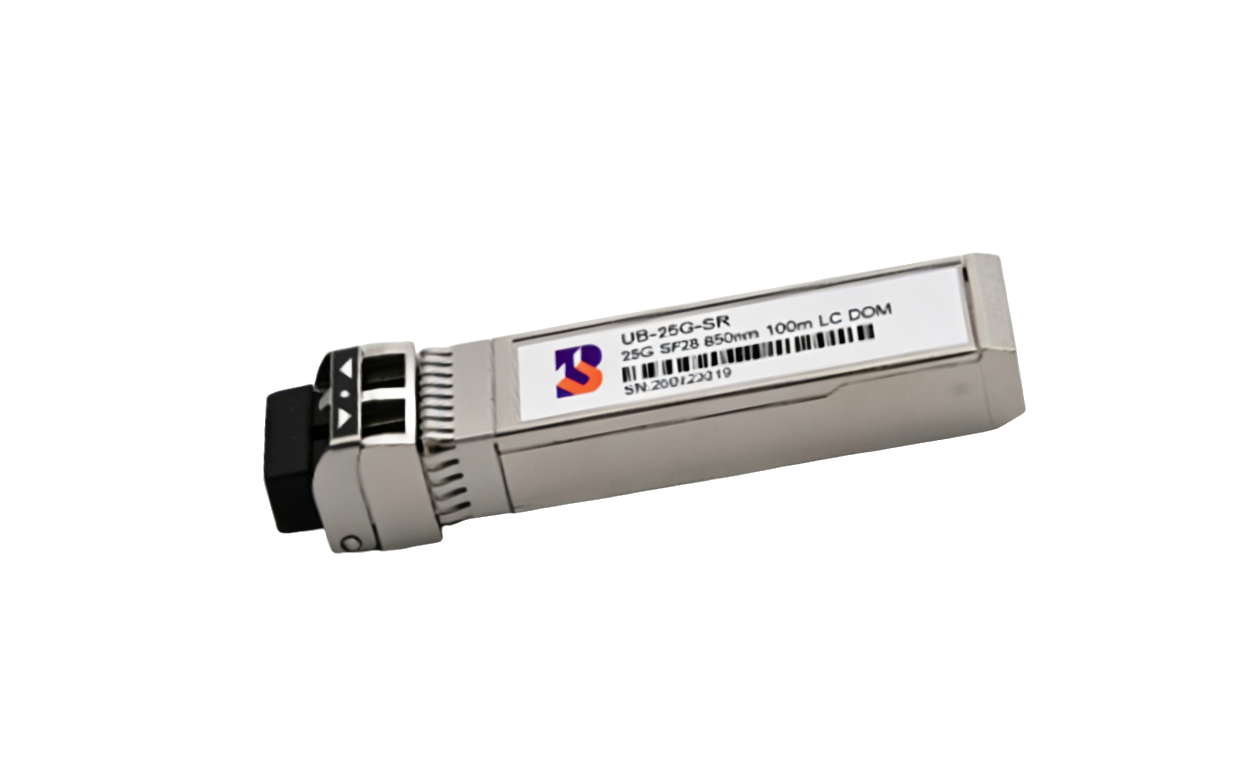

UB-SFP28-SR |
25Gbps |
100M |
850nm VCSEL |
PIN |
-7.6~2.4dbm |
≤-10.3dbm |
|
UB-SFP28-CSR |
25Gbps |
300M |
850nm VCSEL |
PIN |
-7.0~2.2dbm |
≤-8.0dbm |
|
UB-SFP28-LR |
25Gbps |
10KM |
1310nm DFB |
PIN |
-3.8~3.0dbm |
≤-13.0dbm |
|
UB-SFP28-CLRxxxX |
25Gbps |
10KM |
CWDM DFB 1270~1370nm |
PIN |
0~6.0dbm |
≤-14.0dbm |
|
UB-SFP28-CLRxxxx |
25Gbps |
10KM |
CWDM EML 1470~1570nm |
PIN |
-3.0~6.0dbm |
≤-12.0dbm |
|
UB-SFP28-ER |
25Gbps |
40KM |
1310nm EML |
APD |
-3.0~6.0dbm |
≤-19.0dbm |
|
UB-SFP28-LER |
25Gbps |
40KM |
LAN-WDM EML |
APD |
2.0~7.0dbm |
≤-20.0dbm |
|
UB-SFP28-LRA/B |
25Gbps |
10KM |
1270/1330nm DFB |
PIN |
-2.0~4.0dbm |
≤-13.0dbm |
