Features *Hot-pluggable SFP28 footprint *Buit-in digital diagnostic functions *Oxide VCSEL/EML/DFB transmitter *Compliant with single lane 100G Ethernet applications *Duplex LC connector *Up to 40km on 9/125μm SMF,100m(150m)over MMF (50/125μm Om4),70m(100m)over MMF(50/125μm OM3) *Single 3.3V power supply operating *TX input and RX output CDR retiming *RoHS-6 Compliant
|
P/N |
Data Rate |
Reach |
Connector |
Tx |
Rx |
Output Power |
Sensitivity |
|
UB-QSFP-SR4 |
40Gbps |
100M |
MPO-12 |
850nm VCSEL |
PIN |
-7.6~2.4dbm |
≤-11.1dbm |
|
UB-QSFP-CSR4 |
40Gbps |
300M |
MPO-12 |
850nm VCSEL |
PIN |
-7.5~2.4dbm |
≤-11.1dbm |
|
UB-QSFP-SRBD |
40Gbps |
100M |
MMF LC |
850n/910nm |
PIN |
-7.5~2.5dbm |
≤-10dbm |
|
UB-QSFP- SWDM |
40Gbps |
300M |
MMF LC |
850/880/910/940nm |
PIN |
|
|
|
UB-QSFP-PSM4 |
40Gbps |
2KM |
SMF MPO-12 |
1310nm DFB |
PIN |
-5.5~1.5dbm |
≤-12.5dbm |
|

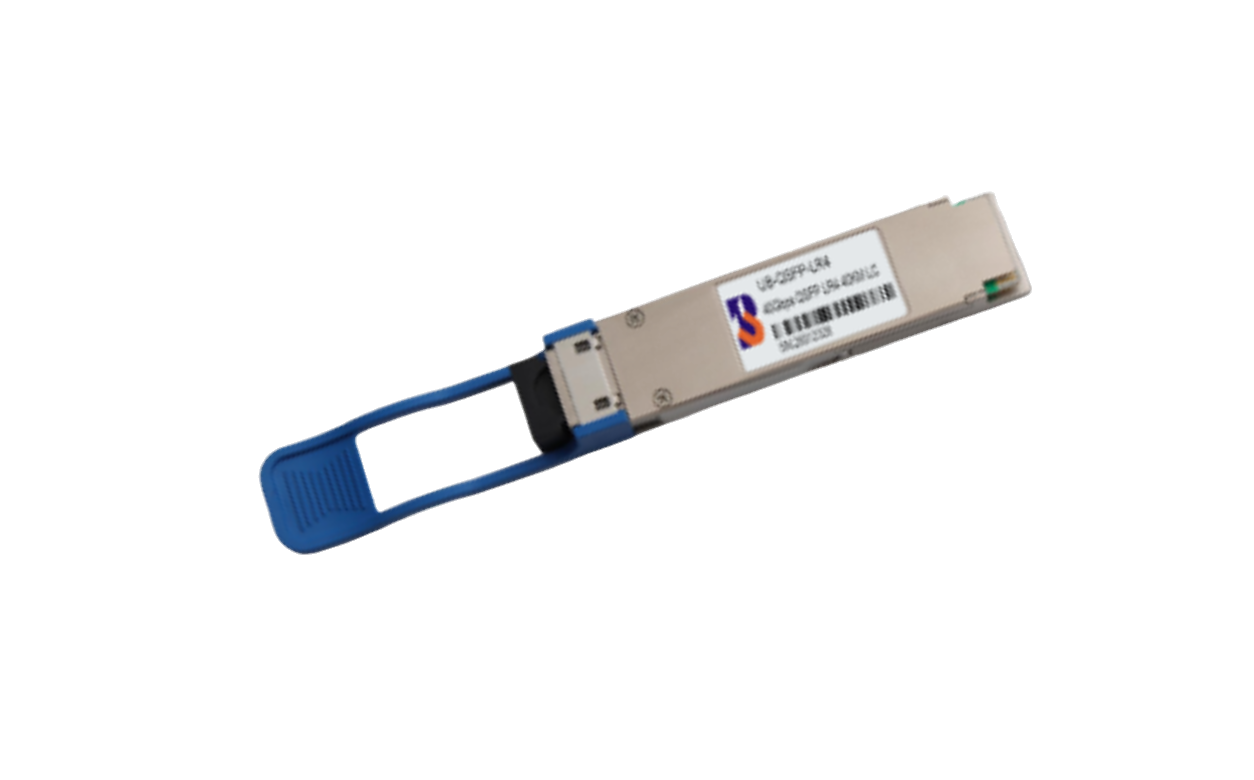

UB-QSFP-LR4 |
40Gbps |
10KM |
Dual LC |
CWDM4 DFB |
PIN |
-7.0~2.3dbm |
≤-11.5dbm |
|
UB-QSFP-ER4 |
40Gbps |
40KM |
Dual LC |
CWDM4 DFB |
APD |
-2.7~4.5dbm |
≤-19dbm |
|
UB-QSFP-60 |
40Gbps |
60KM |
Dual LC |
CWDM4 DFB |
|
|
|
|
UB-QSFP-ZR4 |
40Gbps |
80KM |
Dual LC |
LWDM4 |
|
|
|
|
UB-QSFP-100 |
40Gbps |
100KM |
Dual LC |
DWDM4 |
|
|
|
|
UB-CV-QSFP- SFP |
40G QSFP to 10G SFP Converter |
||||||
