Model

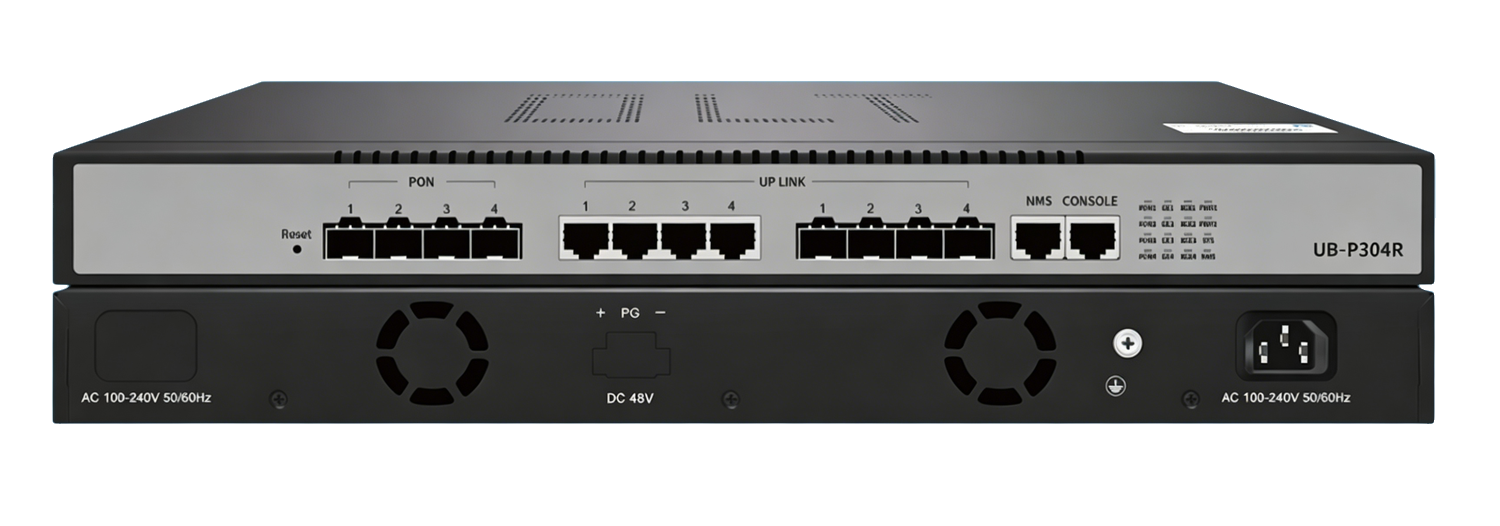

UB-P304R

PON

Interfaces: 4

Physical Interface: 4*EPON SFP slots

Optical module Type: 1000BASE-PX20+/PX20++/PX20+++

Max splitting ratio 1:64

Uplink

Interfaces: 8

Copper: 4*10/100/1000M auto-negotiable, RJ45

SFP: 4*1G/10G SFP+

PON Function

Support auto register

Blacklist and whitelist onu

DBA configure

P2P

ONU authorization

DDR

256M

FLASH

32M

Support Standards

IEEE 802.3ah EPON

IEEE802.3(10Base-T)

IEEE802.3u(100Base-TX)

IEEE802.3z (1000BASE-X)

IEEE802.3ab (1000Base-T)

IEEE802.1Q(VLAN)

IEEEE802.1d(STP)

IEEEE802.1W(RSTP)

IEEE802.1p(COS)

IEEE802.3x (flow-control)

Layer 2/3 Function

VLAN, QinQ, translation

Support at most 4094 VLAN; performance statistic

16K MAC address; mac address management

Port mirror

Support RSTP

Support  control

Support IGMP Snooping/proxy

Support 4K router hosts

Support 64 router subnets

Port isolation

ACL access control based on data stream

Qos based on port, VID, ToS and MAC address;

Encrytion of PON port transmitting data

Configuration and Management

CLI, WEB, SNMP/NMS

Software and bootrom Upgrade by TFTP and FTP

Chinese/English command prompt

Ping

Debug diagnosis

User management

Log management

Alarm management

Management Ports

CONSOLE port/NMS port

Power Input

AC: 100V～240V 47/63Hz

Temperature

-10℃~60℃

Humidity

5%~95%

Weight

<5kg

Size (L*W*H)

Product size: 442mm×260mm×44mm

Package size: 520mm×372mm×87mm
