Model

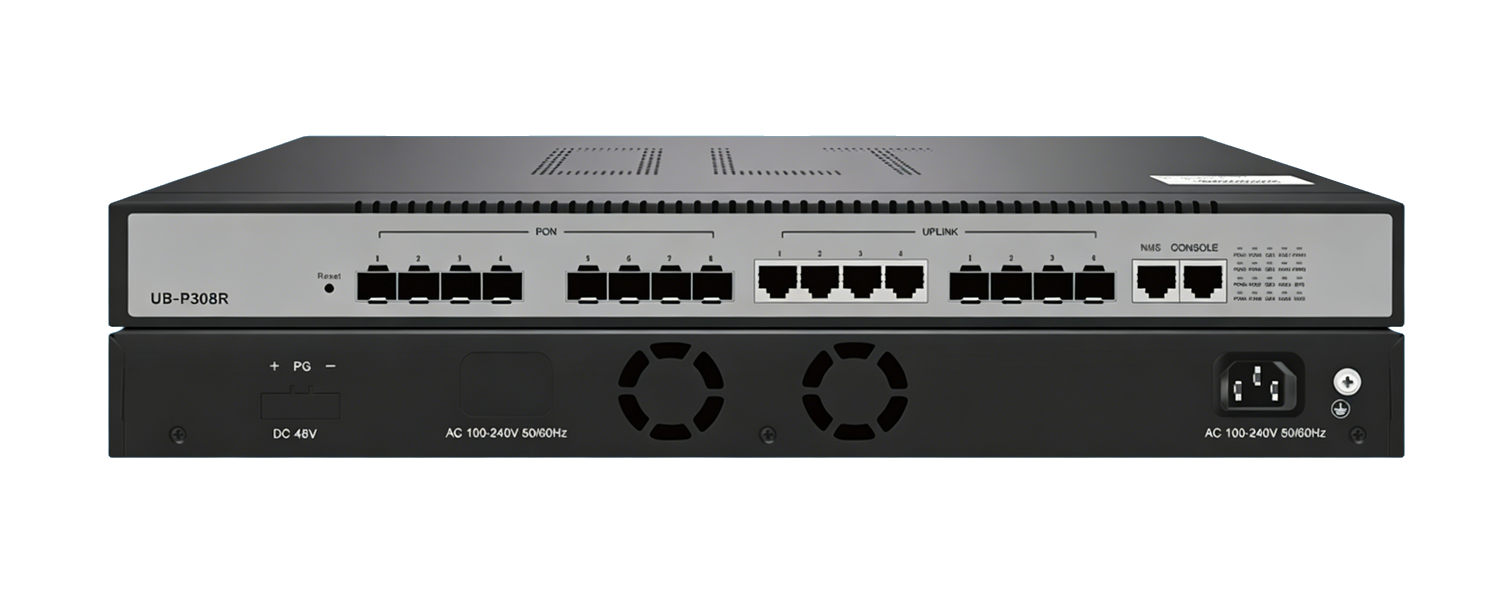

UB-P308R

PON

Interfaces: 8

Physical Interface: 8*EPON SFP slots

Optical module Type: 1000BASE-PX20+/PX20++/PX20+++

Max splitting ratio 1:64

Transmission distance of each OLT is at most 20Km

Uplink

Interfaces: 8

Copper: 4*10/100/1000M auto-negotiable, RJ45

SFP: 4*1G/10G SFP+

PON Function

Support auto register

Blacklist and whitelist ONU

DBA configure

P2P

ONU authorization

DDR

256M

FLASH

32M

Support Standards

IEEE 802.3ah EPON

IEEE802.3(10Base-T)

IEEE802.3u(100Base-TX)

IEEE802.3z (1000BASE-X)

IEEE802.3ab (1000Base-T)

IEEE802.1Q(VLAN)

IEEEE802.1d(STP)

IEEEE802.1W(RSTP)

IEEE802.1p(COS)

IEEE802.3x (flow-control)

Layer 2/3 Function

VLAN, QinQ, translation

Support at most 4094 VLAN; performance statistic

16K MAC address; mac address management

Port mirror

Support RSTP

Support  control

Support IGMP Snooping/proxy

Support 512 router hosts

Support 64 router subnets

Limit maximum of users per port

Port isolation

Packet broadcast control

ACL access control based on data stream

Qos based on port, VID, ToS and MAC address;

Support 802.1x authentication

Encrytion of PON port transmitting data

Configuration and Management

CLI, WEB, SNMP/NMS

Software and bootrom Upgrade by TFTP and FTP

Chinese/English command prompt

Ping

Debug diagnosis

User management

Log management

Alarm management

Management Ports

CONSOLE port/ETH port

Power Input

AC: 100V～240V  50/60Hz

Environment

Operating temperature -10℃~60℃; storage temperature -40℃~80℃

Humidity 5%~95%

Weight

<5kg

Size (L*W*H)

Product size: 442mm×260mm×44mm

Package size: 520mm×372mm×87mm
