Model

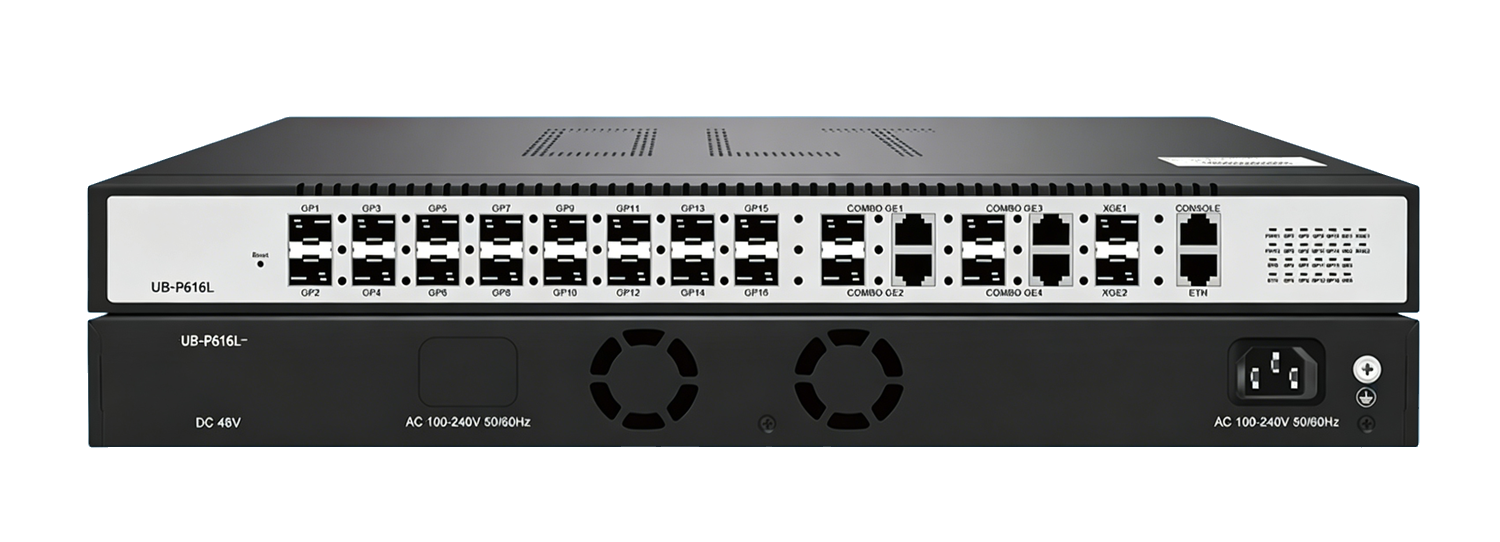

UB-P616L

PON

Interfaces: 16

Physical Interface: 16*GPON SFP slots; Type: Class B+,C, C+, C++, C+++

ITU.T G.984.x/G.988

SN/Password/SN+Password/LOID/LOID+Password/LOID+LOID

Password authentication modes

Terminal access up to 60km on a single fiber

DBA algorithm, and the particle is for 64Kbit/s

Standard OMCI management function

ONU batch software upgrade

PON port optical parameter detection

Auto registration ONU bound with default profile

Blacklist and whitelist ONU

DBA configure

P2P

ONU authorization

Max splitting ratio 1:128

Uplink

Interfaces: 6

Combo: 4*10/100/1000M

SFP: 2*10G SFP+

DDR

1024M

FLASH

32M

Capacity

Switch capacity 108Gbps

Layer 2 Features

32K MAC table

MAC black hole

Port MAC limit

Port isolation

Port mirroring

Link Aggregation

Service-port auto configuration by default

4K VLAN

VLAN, QinQ and translation

Port-based VLAN classification

Uplink VLAN swap and VLAN remark

Spanning Tree, STP/RSTP/MSTP

Loop detection

Layer 2+/3 Features

IGMP Snooping v1/v2, IGMP proxy

IGMP Fast leave

Static Routing

OSPF

DHCP Server, DHCP Snooping and DHCP Relay, DHCP Option82

Security-

User

Anti-ARP spoofing

Anti-ARP flooding

Port Isolation

MAC address binding to the port and MAC address filtering

Security-Device

Anti-DOS attacks against CPU

SSHv2 Secure Shell access

Login Security IP via Telnet

Hierarchical management and Password protection fo users

Security-Network

User-based MAC and ARP traffic examination

Restrict ARP traffic from user and Force user out when abnormal ARP

Dynamic ARP-based binding

IP + VLAN + MAC + Port binding

Port-based broadcast/multicast suppression and auto-port shutdown

DHCP Option82 and PPPoE upload user’s physical location

IP packet header filtering deep to 80 bytes of L2~L7

Service Features-QoS/ACL

Rate-limit to packet sending/receiving speed of port, or,

self-defined flow & flow monitor and two-speed tri-color monitor

CAR(Committed Access Rate),Traffic Shaping and flow statistics

Packet mirror and redirection to interface ad self-defined flow

802.1p DSCP-priority remark

Queue scheduling based on port or self-defined flow

Port/flow support 8 priority queues and scheduler of SP/WRP/SP+WRR

Congestion avoidance mechanism, including Tail-drop and WRED

Standard ACL and extended ACL

Time range ACL

Flow classification and flow definition based on features including Source/Destination MAC, VLAN, 802.1p,ToS, DiffServ, Source/Destination IPv4/v6, TCP/UDP port, Protocol type,etc

High

Reliability

Port loopback detection

Link protection , RSTP/MSTP (recover time <1s),Link aggregation (recover time <10ms)

1+1 power hot backup

O&M

Console port, Out band management

CLI, WEB, SNMPv1/v2, NMS

RMON 1,2,3,9 groups MIB

Configuration Software and bootrom Upgrade by TFTP and FTP

Chinese/English command prompt

Telnet/SSH/Ping and Debug diagnosis

User/Log/Alarm management

Data Logging and RFC 3164 BSD syslog protocol

Topology ; PON/Uplink interface status; performance  monitor/system monitor

Device list

Version release, license management

User management

Power

Consumption < 60W

AC: 100V～240V  50/60Hz; DC: 48V; dual supply 1+1 backup, AC+AC/DC+DC/AC+DC

Environment

Operating temperature -10℃~55℃; storage temperature -40℃~70℃

Storage humidity 5%~95% ( non-condensing )

Weight

<5kg

Size (W*D*H)

Product size: 440mm×380mm×44mm
