Model

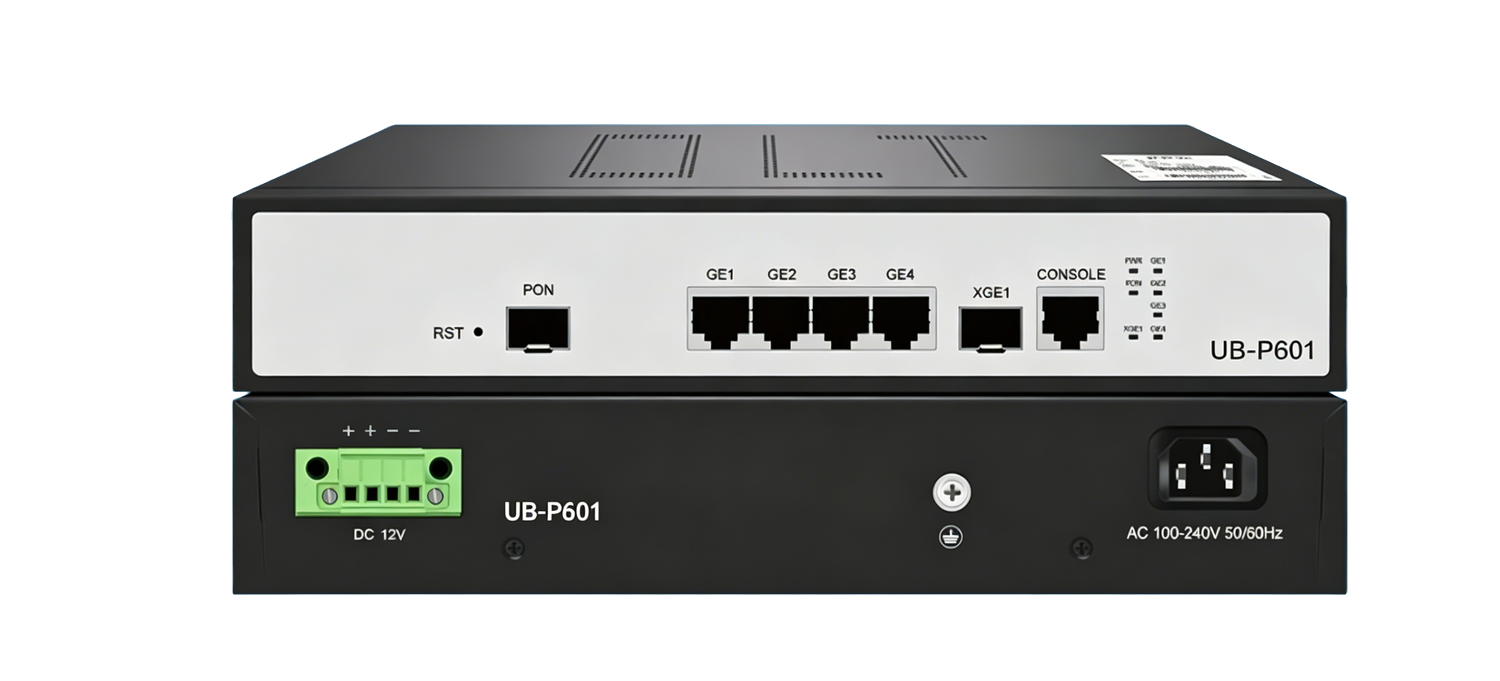

UB-P601

PON

Interfaces: 1

Physical Interface: 1*GPON SFP slot

ITU.T G.984.x/G.988

Password authentication modes

Terminal access up to 60km on a single fiber

DBA algorithm, and the particle is for 64Kbit/s

Standard OMCI management function

ONU batch software upgrade

PON port optical parameter detection

Auto registration ONU bound with default profile

Max splitting ratio 1:128

Uplink

Interfaces: 5

Copper: 4*10/100/1000M auto-negotiable, RJ45

SFP: 1*0G SFP+

DDR

256M

FLASH

32M

Capacity

Switch capacity 31.75Gbps

Support Standards

IEEE 802.3ah EPON

IEEE802.3(10Base-T)

IEEE802.3u(100Base-TX)

IEEE802.3z (1000BASE-X)

IEEE802.3ab (1000Base-T)

IEEE802.1Q(VLAN)

IEEEE802.1d(STP)

IEEEE802.1W(RSTP)

IEEE802.1p(COS)

IEEE802.3x (flow-control)

Layer 2/3 Function

VLAN, QinQ, translation

Support at most 4094 VLAN; performance statistic

16K MAC address; mac address management

Port mirror

Support  storm control

Support IGMP Snooping/proxy

Port isolation

MAC  black hole

Encrytion of PON port transmitting data

Configuration and Management

CLI, WEB, SNMP/NMS

Software and bootrom Upgrade by TFTP and FTP

Chinese/English command prompt

Ping

Debug diagnosis

User management

Log management

Alarm management

Management Ports

CONSOLE port

Power Input

AC: 100V～240V  50/60Hz; DC: 12V; Dual power AC+ DC supported； Power < 10W

Environment

Operating temperature -10℃~60℃; storage temperature -40℃~80℃

Humidity 5%~95%

Weight

<5kg

Size (W*D*H)

Product size: 285mm×192mm×44mm
