Model

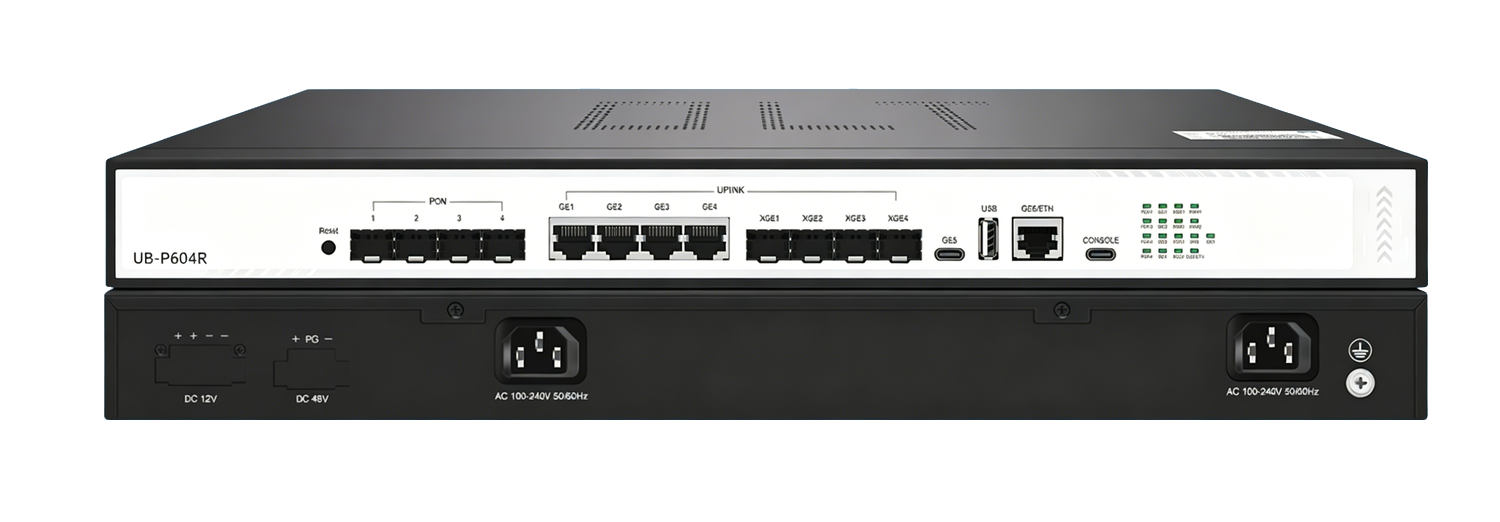

UB-P604R

PON

Interfaces: 4

Physical Interface: 4*GPON SFP slot

ITU.T G.984.2 GPON Class B+/C+/C++, Tx1490nm @2.488Gbps/Rx1310nm @1.244Gbps

DBA/Line/Service/TR069/SIP/Traffic Profile

ONT Deny List(blacklist)

PON Port On/Off

P2P

Rough ONT detect

ONT batch upgrade

IP Host

ONT WAN configuration (private )

ONT Port configuration (private)

Encryption of PON port transmitting data

Max splitting ratio 1:128

Uplink

Interfaces: 8

Copper: 4*10/100/1000M auto-negotiable, RJ45

SFP: 4*0G SFP+

DDR

512M

FLASH

32M

Capacity

Switch capacity 107Gbps

Support Standards

IEEE 802.3ah EPON

IEEE802.3(10Base-T)

IEEE802.3u(100Base-TX)

IEEE802.3z (1000BASE-X)

IEEE802.3ab (1000Base-T)

IEEE802.1Q(VLAN)

IEEEE802.1d(STP)

IEEEE802.1W(RSTP)

IEEE802.1p(COS)

IEEE802.3x (flow-control)

Layer 2/3 Function

VLAN, QinQ, translation

Support at most 4094 VLAN; performance statistic

mac address management

MAC  black hole

Port mirror

Support  storm control

Port isolation

RSTP and MSTP ( recover time < 1s )

Link Aggregation （ recover time < 10ms ）

Support IGMP Snooping/proxy

IPv4/v6 Static Route

RIP/RIPNG/OSFP/OSPFv3 dynamic route

VRRP v2/v3

PIM SM/SSM

DHCP Server/Snooping/Relay

ACL access control based on data stream

QoS based on port, VID, ToS  and MAC

Configuration and Management

CLI, WEB, SNMP/NMS

Software and bootrom Upgrade by TFTP and FTP

Chinese/English command prompt

Ping

Debug diagnosis

User management

Log management

Alarm management

Management Ports

ETH/Console/USB/ GE Type-C

Power Input

AC: 100V～240V  50/60Hz; DC: 48V; Dual power AC + AC or AC+ DC supported； Power < 50W

Environment

Operating temperature -10℃~55℃; storage temperature -40℃~85℃

Humidity 5%~95%

Weight

<5kg

Size (W*D*H)

Product size: 442mm×260mm×44mm
