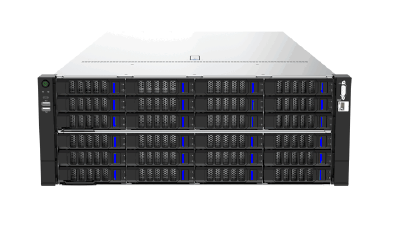

The X5490 V6 is PCIe-based GPU server that supports up to 2 Intel® Xeon® 4th/5th Gen Scalable Processors. Adopting 8-channel DDR5 memory running at 5600MT/s, it delivers up to 50% higher memory bandwidth. Equipped with 15 standard PCIe expansion slots and a maximum of 24 drive bays, it features outstanding scalability. With a power efficiency of up to 96% and a standard operating temperature range of 0°C to 35°C, it brings remarkable energy efficiency gains.
| Model | X5490 V6 |
| GPU Module | 4U 8-card / 10-card Direct Connect Module |
| 4U 8-card / 10-card Switch Module | |
| Processor | Up to 2 Intel® Xeon® 4th/5th Gen Scalable Processors or Montage JinDai® Processor Series. A single processor features a maximum of 64 cores with peak power of 350 W, and supports HBM technology. |
| Memory | Up to 32 DDR5 memory slots with a speed of 5600 MT/s; supports RDIMM, maximum capacity up to 8 TB |
| Compliant with CXL 1.1 | |
| Storage Controller | Integrated 6 Gb/s SATA controller; optional 12 Gb/s SAS HBA and 12 Gb/s SAS RAID controller |
| Storage Expansion | Supports SAS/SATA/NVMe drive configurations: |
| - Up to 24 x 3.5-inch drives | |
| - Up to 24 x 2.5-inch drives | |
| - 2 x 2280/22110 SATA M.2 SSDs or 1 x 2280/22110 NVMe M.2 SSD | |
| PCIe Expansion | Option 1: |
| • Up to 12 standard PCIe expansion slots | |
| • Up to 10 x16 PCIe slots | |
| • 1 x OCP 3.0 slot | |
| Option 2: | |
| • Up to 15 standard PCIe expansion slots (13 x16 PCIe slots + 2 built-in RAID controller PCIe slots) | |
| • 1 x OCP 3.0 slot (can be replaced with a standard PCIe slot optionally) | |
| Management Software | Integrated AST2600 BMC chip; supports IPMI 2.0, Redfish, SOL, KVM, Virtual Media and other functions |
| Network | Comes with 1 x OCP 3.0 network card. Optional 1/10/25/50/100/200/400 GE PCIe network cards and double-width DPU network cards |
| Security | Supports chassis intrusion detection, Intel PFR 3.0, SGX 2.0, as well as TCM/TPM security modules |
| Fans | 8 x 8056 fans with N+1 hot-swap redundancy |
| Power Supply | 4 x 2000 W / 2400 W / 2600 W / 2700 W / 3200 W Platinum power supplies; Titanium power supplies optional. Supports N+N and N+1 redundancy |
| Operating Temperature | 0°C ~ 35°C (The actual operating temperature range varies by configuration) |
| Form Factor & Dimensions | 4U standard chassis |
| - Without mounting ears: 175 mm (H) × 447 mm (W) × 845.8 mm (D) | |
| - With mounting ears: 175 mm (H) × 447 mm (W) × 884.8 mm (D) |
