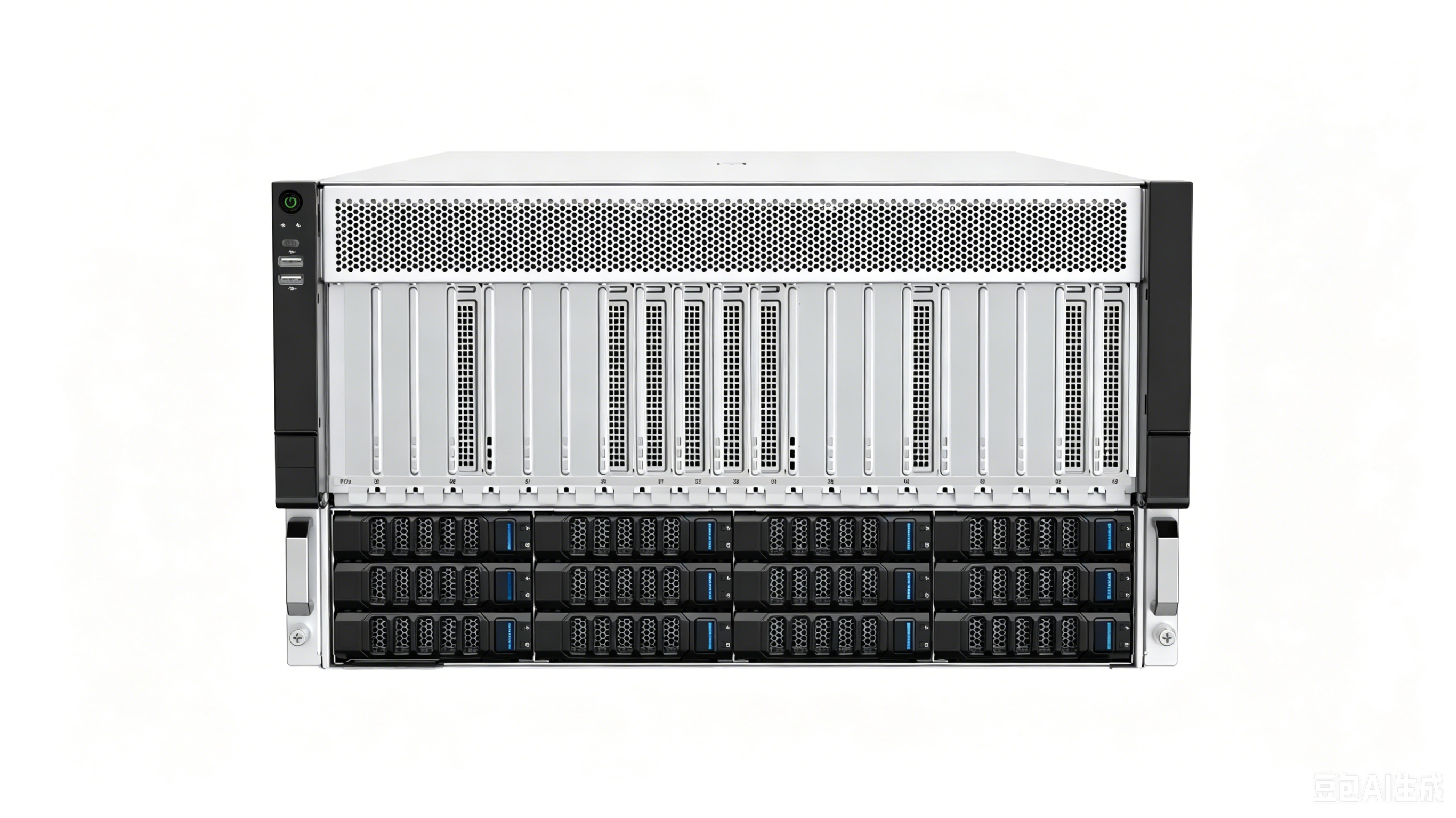

The V6 server supports a maximum of 2 Intel® Xeon® 4th or 5th Generation Scalable Processors, paired with 8-channel 5600MT/s DDR5 memory technology to deliver up to a 50% boost in bandwidth for users. Equipped with 11 standard PCIe 5.0 slots and support for up to 12 hard drive bays, it delivers flexible expandability. Featuring a power efficiency rating of 96% and an operating temperature range of 0℃ to 35℃ under standard conditions, it enables users to achieve higher energy efficiency returns.
| Model | X5680 V6 | |
| GPU Module | 8-card Pass-through Module | 8-card/10-card Switch Module |
| Processor | Supports up to 2 Intel® Xeon® 4th or 5th Generation Scalable Processors , with up to 64 cores per processor, maximum power 350W, and support for HBM technology | |
| Memory | Supports up to 32 DDR5 memory slots with speeds up to 5600MT/s, supports RDIMM, with a maximum capacity of 8TB; | |
| Supports CXL 1.1* | ||
| Storage Controller | Integrated 6Gb/s SATA controller; optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller | |
| Storage Expansion | Supports up to 12 3.5-inch hard drives | |
| Optional 2 x 2280/22110 SATA/NVMe M.2 SSD | ||
| PCIe Expansion | Supports up to 11 standard PCIe expansion slots | Supports up to 27 PCIe expansion slots |
| Supports up to 10 x16 standard PCIe expansion slots | Supports up to 27 x16 standard PCIe expansion slots | |
| Supports 1 OCP3.0 slot | Supports 1 OCP3.0 slot (can be optionally replaced with 1 standard PCIe slot) | |
| Management | Integrated AST2600 BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions | |
| Network | Supports 1 OCP3.0 network card, optional 1/10/25/50/100/200/400GE PCIe standard network card | |
| Security | Supports chassis intrusion detection; supports Intel PFR3.0 and SGX2.0 security technologies; supports TCM/TPM security module | |
| Fan | Supports 2 fan boards: the lower fan board can support 4 x 8056 fans with N+1 hot-swappable redundancy; the middle fan board can support 10 x 8056 fans with N+1 hot-swappable redundancy | |
| Power Supply | 8* 2000W/2400W/2700W/3200W platinum power supplies; titanium power supplies are optional. It supports N+N redundancy and N+1 hot-swappable redundancy. | |
| Operating Temperature | 0°C ~ 35°C (The actual operating temperature range depends on configuration) | |
| Form Factor & Dimensions |
6U Dimensions: 263.7mm (H) × 447mm (W) × 926.9mm (D) |
|
